Why choose steam?

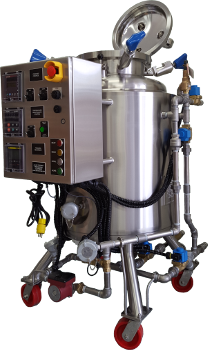

Allen Thermal provides dependable and robust Media Preparators/Sterilization mixing vessels for manufacturing industries and laboratory settings. Our vessels and control systems provide the reliability you require to succeed in a competitive and regulated market.

The vessels we manufacture use a unique steam jacketed design. The cycle time is significantly reduced to provide fast turn-around times to get the most out of your equipment. Steam also provides the control required to enhance your processed product performance.

Each vessel we manufacture has the following characteristics:

  • 316L Stainless Steel construction on all product contact areas with an electro polished interior
  • Dimpled jacket for steam and water - No product contact (sealed jacket)
  • Stainless Steel piping
  • Robust bottom mount magnetic mixing - sanitary de-couple free operation, no plastic components used
  • Magnetic mixer sized to vessel and product viscosity
  • Blade and mixer design for minimal aeration of product
  • NEMA 4X construction for wet environments
  • Mobile - 30 liters through 400 liters - custom sizes available
  • Stationary options available
  • ASME rate/CE compliant/CRN compliant
  • Temperature Maintenance option available

Made with standards in mind

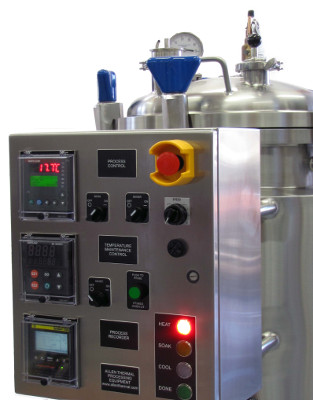

We know industry standards are important. That is why our vessels have the controls and tools to make documentation as easy as possible.

... plus the following features:

The unique mixer design provides reliable blending of ingredients with minimal aeration.

What size vessel is right for you?

Different size vessels have different requirements. Check the specifications below and see which one meets your needs.

30 Lt. Reactor/Sterilizer

Maximum Volume Processed - 30 Lt.

Minimum Volume Suggested - 10 Lt.

Approximate Measurements:

47 Inches (120 cm) height

30 Inches (77 cm) width

Utilities Required:

Untreated facility water - 10 Liters per/min

120/220 Volts AC Customer Specified at 15 amps/20 amps

Facility Steam - 35 kW

Facility drain

Exterior:

304 Stainless Steel - Brushed

NEMA 4X Wash Down Rated (Including Control Panel)

Swivel casters for Easy Movement

60/100 Lt. Reactors/Sterilizers

Maximum Volume Processed - 60/100 Lt.

Minimum Volume Suggested - 20/30 Lt.

Approximate Measurements:

60 Lt.:

51 Inches (130 cm) height

40 Inches (102 cm) width

100 Lt.:

55 Inches (140 cm) height

40 Inches (102 cm) width

Utilities Required:

Untreated facility water - 10 Liters per/min

120/220 Volts AC Customer Specified at 15 amps/20 amps

Facility Steam - 55 kW

Facility drain

Exterior:

304 Stainless Steel - Brushed

NEMA 4X Wash Down Rated (Including Control Panel)

Swivel casters for Easy Movement

150 Lt. Reactor/Sterilizer

Maximum Volume Processed - 150 Lt.

Minimum Volume Suggested - 60 Lt.

Approximate Measurements:

60 Inches (153 cm) height

35 Inches (89 cm) width

Utilities Required:

Untreated facility water - 10 Liters per/min

120/220 Volts AC Customer Specified at 15 amps/20 amps

Facility Steam - 55 kW

Facility drain

Exterior:

304 Stainless Steel - Brushed

NEMA 4X Wash Down Rated (Including Control Panel)

Swivel casters for Easy Movement

250/350/400 Lt. Reactors

Maximum Volume Processed - 250/350/400 Lt.

Minimum Volume Suggested - 150 Lt.

Approximate Measurements:

250 Lt.:

66 Inches (168 cm) height

42 Inches (107 cm) width

350 Lt.:

71 Inches (181 cm) height

42 Inches (107 cm) width

400 Lt.:

74 Inches (188 cm) height

42 Inches (107 cm) width

Utilities Required:

Untreated facility water - 10 Liters per/min

120/220 Volts AC Customer Specified at 15 amps/20 amps

Facility Steam - 80kW to 100 kW

Facility drain

Exterior:

304 Stainless Steel - Brushed

NEMA 4X Wash Down Rated (Including Control Panel)

Swivel casters for Easy Movement
